額定動作溫度

（TF）

在僅通以不超過10mA的探測電流的條件下測得的使熱熔斷體導電狀態改變的溫度，熱熔斷體必須在上述溫度0/-10℃范圍內動作。

Temperature of the thetmal-link which causes it to change its state of conductivity with a detection current up to

10mA as the only load. Thermal fuse must be fusing within the scope of +0/-10℃.

熔斷溫度

Fusing-off

temperature

產品放置油槽內并通以不超過10mA電流值 ，然后以0.5K/min 至1K/min 的速度穩定升溫 ，熱熔斷體實際動作溫度值。

The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily

with a rate of rise between 0.5K/min and detective current 10mA or less.

保持溫度

（Th）

熱熔斷體在規定的條件下通過額定電流且保溫168小時，其導電狀態不發生改變的最高溫度值或按IEC60691標準測試值。

The maximum temperature at which a thermal-link will not cause a change in state of conductivity to open circuit

while conducting rated current for 168 hours or according to IEC60691.

最高極限溫度

（Tm）

由制造廠規定的溫度，在此溫度下熱熔斷體導電狀態已改變，但其機械性能和電氣性能在規定的時間內不致減弱。

Temperature of the thermal-link stated by the manufacturer , Up to which the mechanical and electrical properties

of the thermal-link , Having changed its state of conductivity , Will not be impaired for a given time.

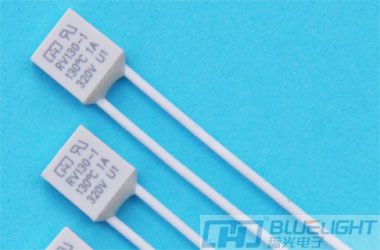

材質

Materials

本體 Body：Thermoplastic

引腳 Lead： Tin Plated Copper Wire

封口樹脂 Sealing Resin：Epoxy Resin

特性

Features

應用領域

Application

燈具、開關電源、家用電器、電機、變壓器、元器件、通訊等領域。

Lamps, Switching Power Supply, Home Electrical Appliances, Motors, Transformers, Components, Communications

Field , etc.
